STEDI- Type X pro 215mm LED round driving light set LEDTYPE-X-PRO
STEDI- Type X pro 215mm LED round driving light set LEDTYPE-X-PRO
LOCAL PICK UP AND DELIVERY
LOCAL PICK UP AND DELIVERY
LOCAL PICK UP AND DELIVERY-
Free local pick up must be arranged via email genrepairs@yahoo.com.au or PH: 0466337824. Mon – Fri 6am- 1pm (excluding local public holidays) We will do our best to get your order ready for you as soon as possible 😊
Local delivery is also available for a small fee, upon contacting us we will let you know the cost to deliver to your preferred location. We have local delivery runs Mon – Fri 6am- 1pm (excluding local public holidays)
SHIPPING-
Domestic and international-Shipping is calculated based on your delivery location, upon contacting us via email genrepairs@yahoo.com.au we will quote your shipping cost and ETA. We use a wide range of couriers tailored to your location to ensure your items are delivered efficiently. Please note some bulky/heavy items may incur extra freight charges or insurance costs pending their value.
To arrange shipping, please send the following details:
Name
Delivery address
Contact phone number
STEDI Type-X Pro Driving Lights are on the cutting edge of driving light technology, engineered from the ground up to deliver unrivaled road/shoulder illumination and unmatched driving confidence. Each of the two lights in this pack is made from 37 individual Oslon High-Flux LEDs (31 pencil beams, 6 spread) and the combined light output can be thrown a whopping 1.15km, meaning whatever driving obstacle is ahead, you'll be well aware of it with STEDI Type-X Pro lights. The 6 spread LEDs function as flood reflectors that push light right out onto the shoulder of the road, eliminating the need for wide beam covers.
The engineering doesn't stop there, with STEDI pouring considerable resources (both time and testing) to ensure these lights are as durable as they are effective. The optical grade lens protecting the LED casing shares DNA with ballistic glass, making it virtually indestructible. It's also been UV stabilised, so it won't degrade over time under the harsh local sun. This means you won't be needing a secondary cover for your lights, the presence of which typically reduces light transmission and lowers the efficacy of the lights. What's even more impressive is the Ingress Protection rating of 68, meaning the interior structure is completely dust tight, and is safe for submersion in water up to 3m (and let's be honest, if your lights are further than 3m under water, you might have bigger problems).
Inclusions:
2 x STEDI Type-X PRO LED Driving Lights
2 x Protective STEDI Black Out Covers
2 x Grey Coloured Inner Rings
2 x Orange Coloured Inner Rings
1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
Complete Stainless Steel Fastener Kit
Wiring & Fitting Instructions
Specs:
LED | 37 x Oslon High-Flux LED |
RAW LUMENS | 26,270 (Pair) |
TESTED LUMENS | 15,870 (Pair) |
AMP DRAW | 10.4A @ 13.2v (each) |
POWER DRAW | 137W |
CANDELA | 1,334,025cd |
BEAM PATTERN |
6 x 50° Spread 31 x 5.8° Pencil Beam |
INGRESS PROTECTION | IP68 | Submersible up to 3m |
COLOUR TEMP (CCT) | 5700K |
VOLTAGE COMPATIBILITY | 12v & 24v |
LUMEN MAINTENANCE | 50,000 LM-80 |
WEIGHT | 2.860kg (each) |
OPERATING TEMPERATURE | -40°C to 60°C |

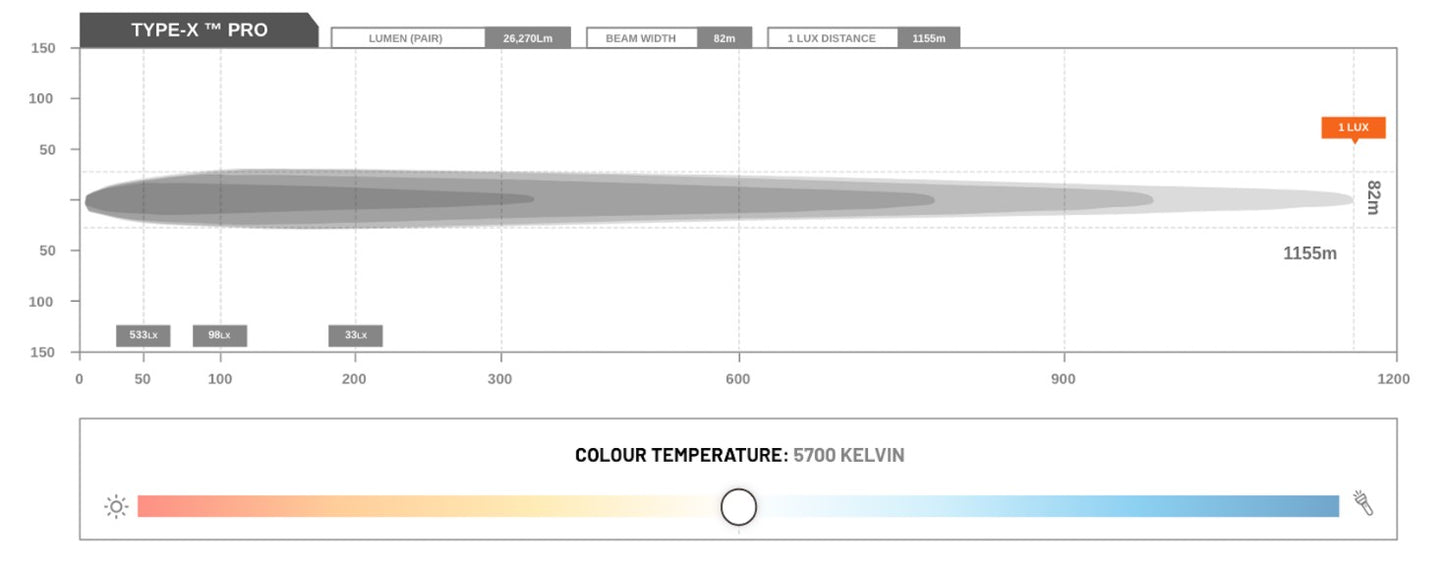

PHOTOMETRIC DATA | |
10 m | 13,340 Lx |
50 m | 533 Lx |
200 m | 33 Lx |
300 m | 14 Lx |
400 m | 8 Lx |
1,000 m | 1.3 Lx |
1,155 m | 1 Lx |
