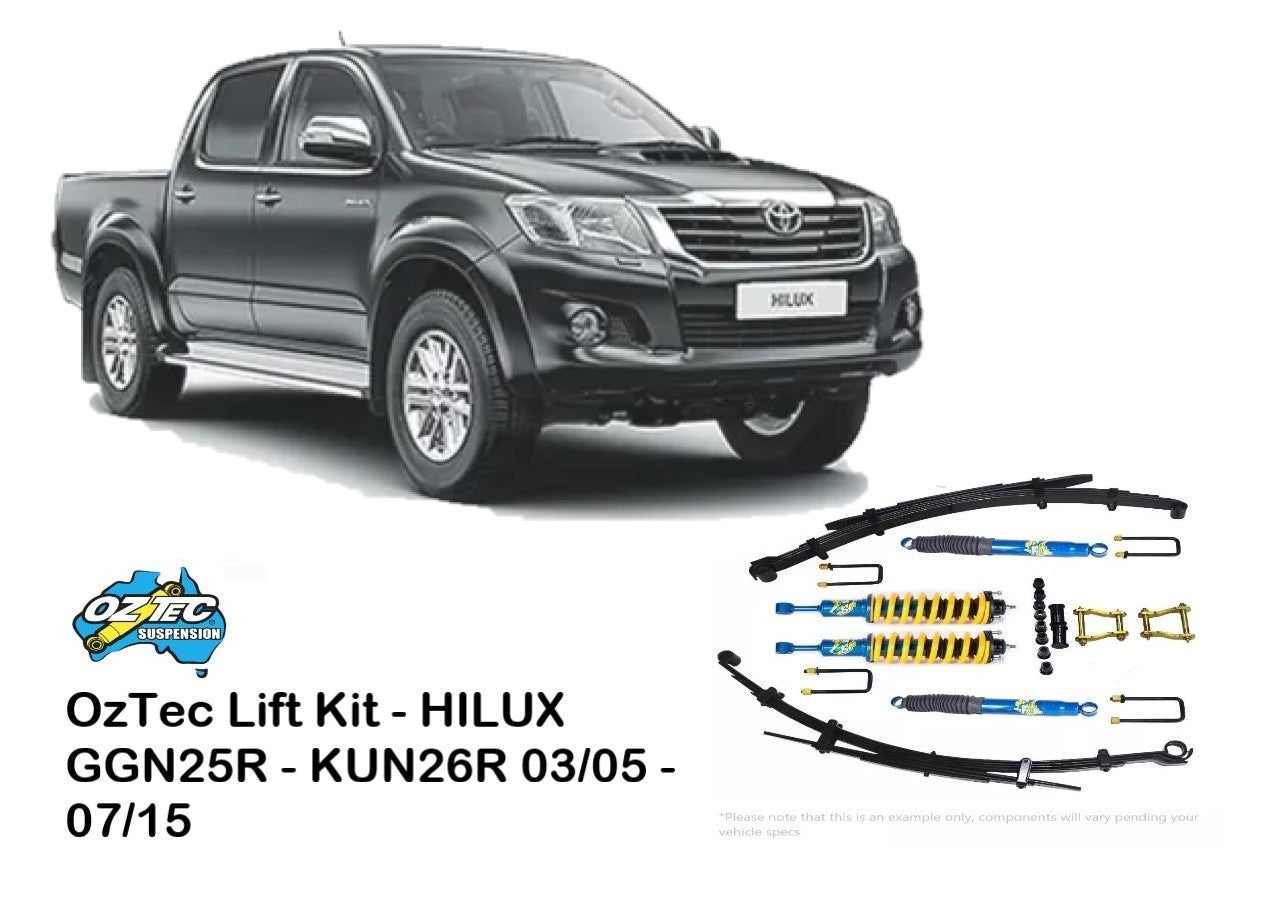

OZTEC Lift Kit for Toyota HiLux GGN25R - KUN26R 03/05 - 07/15
OZTEC Lift Kit for Toyota HiLux GGN25R - KUN26R 03/05 - 07/15
LOCAL PICK UP AND DELIVERY
LOCAL PICK UP AND DELIVERY
LOCAL PICK UP AND DELIVERY-
Free local pick up must be arranged via email genrepairs@yahoo.com.au or PH: 0466337824. Mon – Fri 6am- 1pm (excluding local public holidays) We will do our best to get your order ready for you as soon as possible 😊
Local delivery is also available for a small fee, upon contacting us we will let you know the cost to deliver to your preferred location. We have local delivery runs Mon – Fri 6am- 1pm (excluding local public holidays)
SHIPPING-
Domestic and international-Shipping is calculated based on your delivery location, upon contacting us via email genrepairs@yahoo.com.au we will quote your shipping cost and ETA. We use a wide range of couriers tailored to your location to ensure your items are delivered efficiently. Please note some bulky/heavy items may incur extra freight charges or insurance costs pending their value.
To arrange shipping, please send the following details:
Name
Delivery address
Contact phone number
FREE STANDARD SHIPPING
Comfort kit- KUN26 HILUX 4x4 Dual cab
GGN25R-KUN26R 03/05~07/15
Raised 40~50mm w/up to 65kg front constant
Contents:
OzTec 64mm Outback Gas Shock Absorber -Front - w/0~50mm Raised Suspension
*Please note that during installation the Helix (step down) on the spring seat must be timed so that it is installed to the rear of the vehicle.
OzTec 64mm Outback Gas Shock Absorber - Rear - Comfort
*Installer - Please note: The Boot goes at the Top - Do not Zip-tie the Boot to the Shock Body
KING Coil Spring - Linear Rate - Front
OzTec Leaf Spring - Rear - Raised 40~50mm - w/100~300kg Constant Load
*Tension U-Bolts to vehicle makers specifications with vehicle at ride height
OzTec Brake Proportioning Valve Link - Adjustable to suit up to 100mm Lift - (Excl VSC)
Not required on vehicles with optional Vehicle Stability Control (VSC) from 07/2011
OzTec Greasable Spring Anchor Pin - 14mm - Front of Rear Spring
OzTec Greasable Spring Shackle
OzTec U-Bolt - Rear Springs - Square Top - 14x62x180mm
*After 1000km, re-tension U-Bolts to vehicle makers specifications with vehicle at ride height
OzTec Bush - Kit of 12 + 2 Tubes - Rear Spring -
Eyes & Chassis
OzTec Top Mount - Incl' Seat Rubber & Pin Bushes - Front Shock - L or R
